Walker

H-Series

The high production H-series features increased speed while still using the superior design of an out-front style mower.


Choose Your Model

H25
H27i
H24d
selected

H27i At A Glance

27-HP, Electronic Fuel Injection (EFI) Kohler OHV V-Twin engine, air-cooled
Tilt-up body completely exposes drive train
Remote oversized air cleaner for engine
Splined PTO drive shaft with quick-disconnect coupler
9.4 gallon (35.6 liter) fuel tank capacity
10 mph (16 kph) ground speed

H27i Overview

This larger machine has two dedicated decks (R52 and S60) and a variety of available attachments. The H-series also offers three different engine choices: a 25-hp air-cooled Kohler, a fuel-saving 27-hp air-cooled EFI or a 24-hp liquid-cooled Yanmar diesel. Walker's H-series tractors stand alone in their class for high quality, high production, year round work with beautiful results.

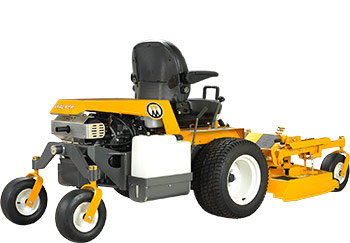

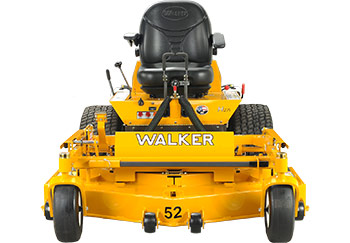

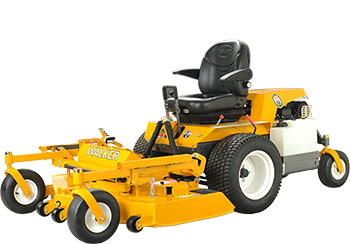

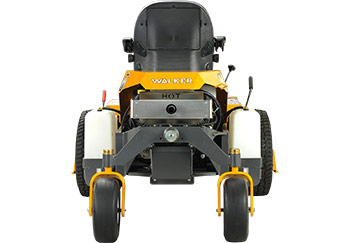

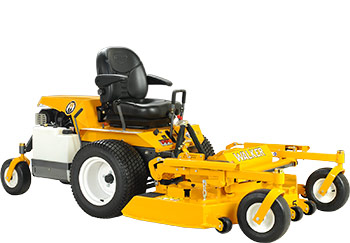

H27i Photos

H27i
H27i
H27i
H27i
H27i

H27i Video


H27i Specifications

Engine Kohler Command Pro, ECH749, EFI
Displacement 747 cc (45.6 cu in)
Max Power 26.5 hp @ 3600 rpm
Max Torque 44.3 ft lbs
Fuel Gas (87 oct)
Fuel Capacity 9.4 gal (36 liter)
Fuel Consumption (per hour) 1.17 gal (4.43 liter)
Cooling System Air
Lubrication System Full Pressure w/Filter
Weight 750 lbs[1]
1198 lbs[2]
Dimensions 46.25H x 62W x 107L[2]
[1]Tractor only, [2]Tractor with a typical 60" deck.

H27i Manuals

Model Type
H27i, H27i, MBS Combined
MBS29 Parts
H24d, MBSY Owners Parts
